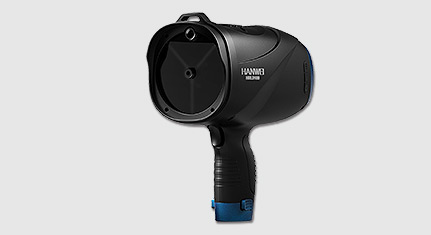

HRLD100 Hand Held Laser Methane Detector

HRLD100 Hand Held Laser Methane Detector
Target Gas: Methane
Sensitivity: 10ppm·m
Response Time: T90<0.1s
Detection Distance: 30m(adjustable)
Explosionproof degree: ExibⅡBT4
Protection Grade: IP54
Share With:

Overview

HRLD100 Hand held laser methane detector adopts the most advanced laser gas detection technology and will provide precise location and find the leakage source efficiently.

Features

TDLAS technology,remote detection

Detection distance maximum 30 meters

Easy for operation, have visual and audible alarm

GPS locate function, data transmitted to monitoring platform by GPRS

High selectivity,only response to methane,no interference from water vapor,

Car exhaust and other gases

Fast response, no alarm delay

High sensitivity



Technical Data

Target Gas: Methane
Sensitivity: 10ppm·m
Range: 0-50000ppm·m
Response Time: T90<0.1s
Alarm Method: Visual and audible
Detection Distance: 30m(adjustable)
Working Temperature: -20℃~50℃
Working Humidity: 0-99%RH(no dews)
Power Supply: rechargeable lithium battery
Explosionproof degree: ExibⅡBT4
Protection Grade: IP54
Weight: 1.3kg
Laser safety class:
Detect: 1
aiming: 3R
